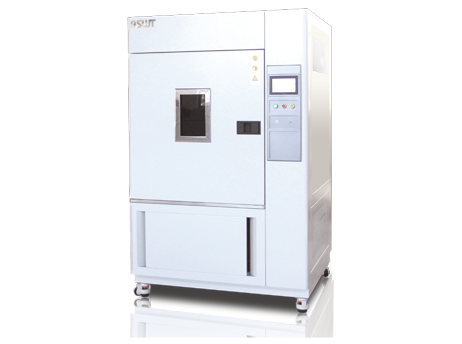

氙燈耐氣候試驗設備采用能模擬全陽光光譜的氙弧燈來再現不同環境下存在的破壞性光波。本設備可以為科研、產品開發和質量控制提供相應的環境模擬和加速試驗
除了進行光降解測試以外，氙燈耐氣候試驗設備還可以通過增加濕氣和水噴淋選件模擬室外濕氣對材料的破壞影響
Xenon - resistant climate test equipment USES xenon arc lamps that mimic the full spectrum of sunlight to reproduce the destructive light waves in different environments. The equipment can provide corresponding environmental simulation and accelerated test for scientific research, product development and quality control.
In addition to the photodegradation test, the xenon test equipment can also be used to simulate the effects of outdoor moisture on the material by adding moisture and water spray.
| 工作室尺寸Test Space Dimensions | 1000×1000×1000（W×H×D）（mm） |
| 外形尺寸 Overall Dimensions | 1520×1485×2120（D×W×H）（mm） |
| 樣品夾數量 Sample Holder Number | 40 pieces |
| 樣品夾尺寸 Sample Holder Size | 70W*150H*15D mm |
| 溫度范圍 Temp. Range | RT+10℃～+85℃ |
| 溫度波動度 Temp. Fluctuation | ≤±0.5℃ |
| 溫度均勻度 Temp. Uniformity | ≤2.0℃ |
| 濕度范圍 Humidity Range | 45%～98%RH |
| 濕度誤差 Humidity Diviation | +2/-3 %RH |
| 輻照強度 Irradiation Intensity | 1120W/m2±10% |
| 氙燈功率 Lamp Power | 1800W/4500W |
| 波長范圍 Wavelength Region | 280~800nm |
| 樣架旋轉速度 Sample Frame Rotary Speed | 1~5/min（可調adjust） |
| 冷卻方式 Type of Cooling | 水冷 Water-cooled |
| 額定電壓 Nominal Voltage | AC380V ±10%，50Hz |
| 功率 Power | 8(kW) |
備注
1.設備性能在環境溫度+25℃，相對濕度65%RH下，無負載所測。The performance vulues refer to environmental +25℃ 65%RH,no loading.
2.外形尺寸未包含局部突出部分。The ledge is not included in the overall dimensions.
